BUC-KU02-10.75 V2.0

BUC-KU02-10.75 V2.0

BUC-Ku02-10.75 is block up-converter with fixed output power P1dB 2 W (ALC power: 200 mW) and LO of 10.75 GHz.

Our BUC operates with up to 25 carriers and has built-in reference of 10 MHz;

and ALC with 25 dB range;

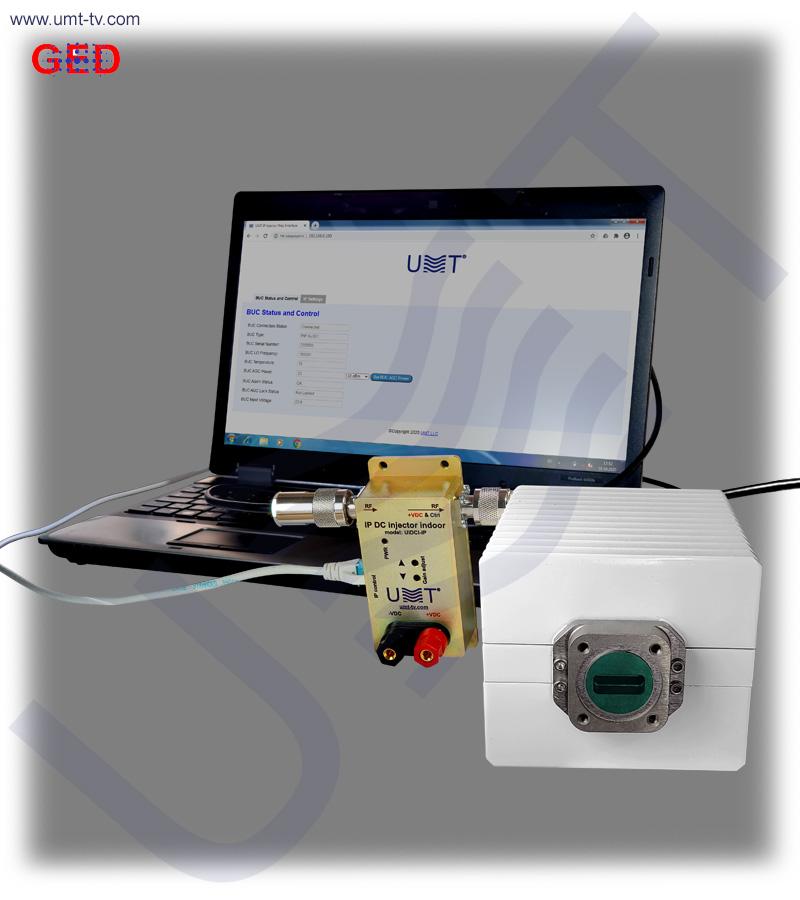

IP Ctrl (by order)

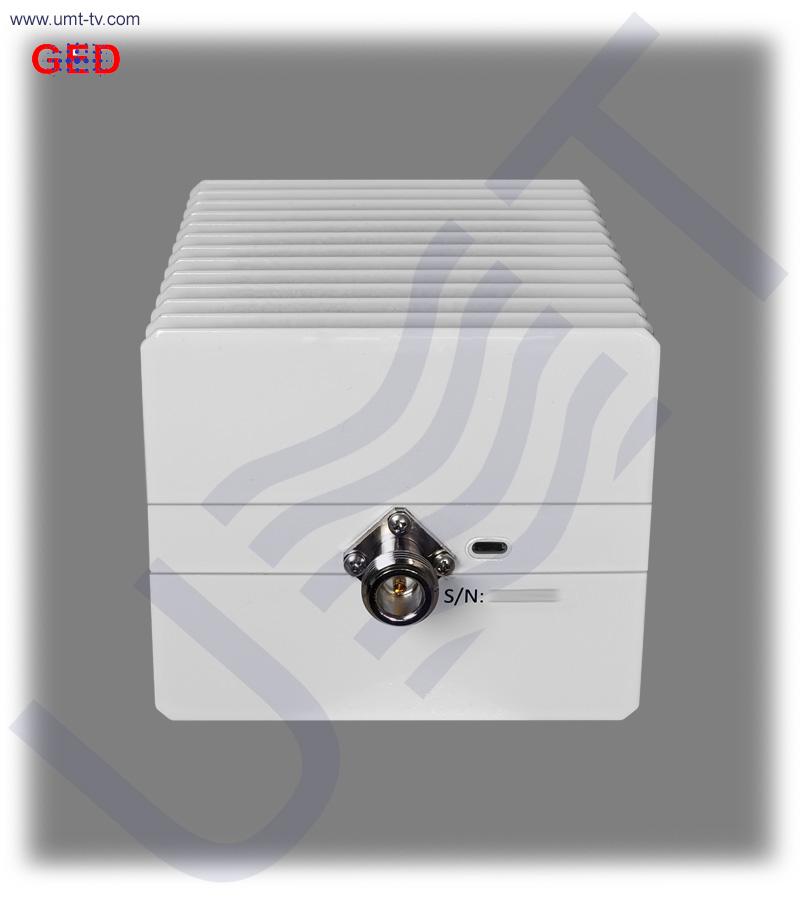

+ LED status indication at the rear side.

Category: Tags: , ,

Description

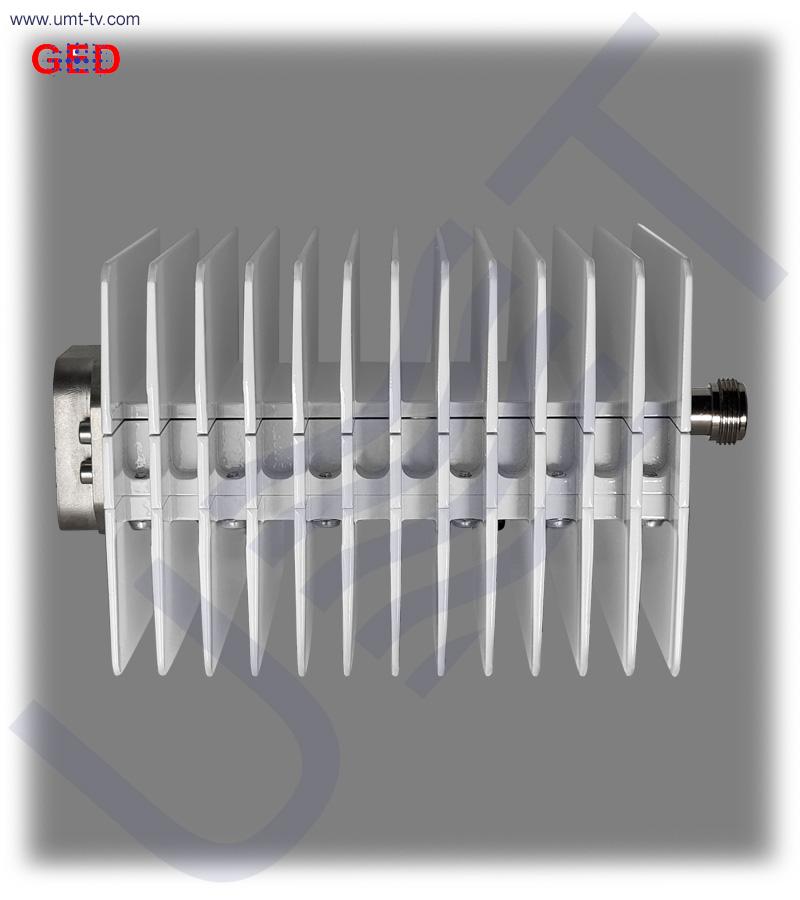

2 W Ku-band block up-converter with LO of 10.75 GHz BUC-Ku02-10.75-v2.0 is designed for MVDS TV broadcasting systems application in accordance with DVB-S/S2 or DVB-C standards (use “Customized” button to choose needed parameters) and operates with up to 25 carriers. BUC-Ku02-10.75-v2.0 has output flange of PBR120 type and can be used with regular radio-relay link (directional) or broadcast (sector and OMNI) antennas. BUC-Ku02-10.75-v2.0 supports all modulation types up to 32APSK and 256QAM (you may choose the modulation type while filling the “customized equipment” form). BUC-Ku02-10.75-v2.0 has the best linearity parameters to ensure the stability of the output frequency and low IMD3 level (these parameters are very important for high quality modulation, therefore the local oscillator of BUC-Ku02-10.75-v2.0 is locked by PLL with internal frequency reference). BUC-Ku02-10.75-v2.0 provides 11.70 – 12.70 GHz output frequency range (bandwidth in Ku-band) for 950-1950 MHz input frequency range (bandwidth in L-band).

LO: 10.75 GHz IN: 950 – 1950 MHz OUT: 11.70 – 12.70 GHz

Brand

UMT
